PUTZMEISTER

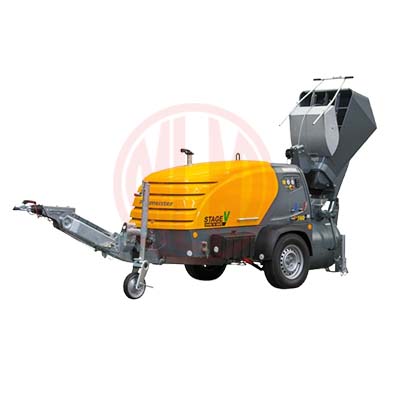

Screed Conveyor Putzmeister M 760
Screed Conveyor Putzmeister M 760- Mixing chamber : 200 liters
- Capacity : 5 m³/hr
- Horizontal reach gross : 200 meters
- Vertical Reach : 150m
- Casting Pressure : 8 bars
- Compressor : 5 m³/min
- Engine : 4-cylinder Deutz diesel
- Engine Power : 46kW
- Emission Level: 3A
- Diesel Tank : 60 liters
- Weight :1900 kg
- Length x Width x Height : 5075 x 1480 x 2431mm
- Filling Height : 400mm
- The biggest one : 16mm
- To the chassis : braked

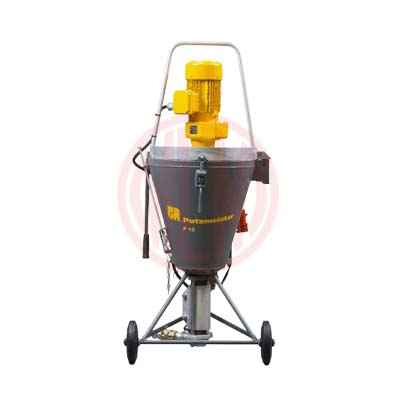

Pompa Mortar (Sprayboy) Putzmeister P12
Pompa Mortar (Sprayboy) Putzmeister P12- Mixing Vessel : 50 liters
- Output : 6-12 l³/min
- Horizontal reach gross : 30 meters
- Vertical Reach : 15m
- Delivery Pressure : 25 bars
- Compressor : 5 m³/min
- Pump : D 5 short
- Engine Power : 1.4 / 1.8 kW
- Operating Voltage – Frequency: 400 V / 50 Hz + 60 Hz, 16 A, 5p, 6h
- Filling Height : 939 mm
- Weight :125 kg
- Length x Width x Height : 714 x 696 x 1437 mm
- Max. Aggregate Size : 4 mm
- Outlet Diameter: M 35 mm

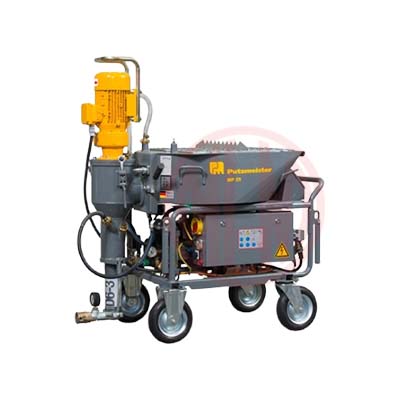

Pompa Plastering Putzmeister MP 25
Pompa Plastering Putzmeister MP 25- Mixing Vessel : 115 liter
- Output : 25 l³/min
- Horizontal reach gross : 40 meters
- Vertical Reach : 13 meters
- Delivery Pressure : 40 bars
- Compressor : 200 l³/min
- Pump : D6 Power
- Engine Power : 5.5 kW
- Operating Voltage – Frequency: 220 V / 60 Hz
- Mixer Drive : 1.1 kW
- Water Pump : 0.78 kW kW
- Weight :240 kg
- Length x Width x Height : 1324 x 728 x 1443 mm
- Max. Aggregate Size : 4 mm
- Outlet Diameter: MM 35 / V 25-40 [embed]https://www.youtube.com/watch?v=EOKWbLsO90Q[/embed]
Pompa Beton Halus Putzmeister P718
Pompa Beton Halus Putzmeister P718- Feed Hopper : 360 liter
- Output : 4-17.4 m³/hr
- Horizontal reach : 300 meters
- Vertical Reach : 100 meters
- Delivery Pressure : 68 bar
- Strokes (piston side) : 27
- Pump : hydraulic , 2-cylinder
- Material Cylinder Diameter-Stroke Length: 150/700 mm
- Mixer Drive : 1.1 kW
- Water Pump : 0.78 kW kW
- Weight :240 kg
- Length x Width x Height : 3025 x 1460 x 1600 mm
- Max. Aggregate Size : 32 mm
- Filling Height : 1120 mm
