WACKER NEUSON
Internal Vibrator Wacker Neuson HMS35
Internal Vibrator Wacker Neuson HMS35- Diameter : 35 mm
- Engine / Motor : Double Insulated Universal motor
- Voltage 1~V : 230
- Current : 7.8 A
- Frequency : 50-60 Hz
- Power : 1.8 kW
- Power Cable : 5 m
- Weight : 5.9 Kg
- L x W x H : 312x154x230 mm
Beton Cutter Wacker Neuson BTS635S
Beton Cutter Wacker Neuson BTS635S- L x W x H : 825 x 315 x 420 mm
- Weight : 11.3 kg
- Blade diameter max. : 350 mm
- Blade diameter min. : 300 mm
- Range : 4.5 mm
- Blade arbor : 25.4 mm
- RPM/speed of the blade (max.) : 4,240 rpm
- Cutting depth max. : 128 mm
- Engine / Motor : Single-cylinder two-cycle gasoline engine
- Displacement : 86 cm³
- Engine performance : 4.3 kW
- Fuel consumption : 2.3 l/h
- Tank capacity : 1.1 L
- Gasoline/oil mixture : 50:1
Baby Roller Wacker Neuson RD7HS
Baby Roller Wacker Neuson RD7HS- Operating Weight : 735 kg
- Engine Manufacturer : Hatz
- Engine Motor : Gasoline
- Power : 6.1 kW
- Starting System : Hand Crank
- Drum Dia. : 400 mm
- Max. Area Capacity : 2,895 m²/ hr
- Centrifugal Force : 22.5 kN
- Overall Dimension : 2467 x 720 x 1200 mm (LxWxH)
Aspal Cutter Wacker Neuson BFS16
Aspal Cutter Wacker Neuson BFS16- Power : 6.6 kW / 9 HP
- Fuel Consumption : 1.7 L/H
- Tank Capacity : 7 L
- Water Tank Capacity : 45 L
- Dimension : 1.070 x 556 x 1.045
- Starting Method : Recoil
- Weight : 130kg
- Blade Diameter : 400 mm
- Max. Cutting : 150 mm
Trowel Wacker Neuson MCT36
Trowel Wacker Neuson MCT36- Overall Dimensions : 1820x945x980 mm
- Engine : LONCIN
- Trowel Diameter : 915mm
- Number of Blade : 4
- Speed Range : 70-137 rpm
- Weight : 83kg
Aspal Cutter Wacker Neuson BFS20
Aspal Cutter Wacker Neuson BFS20- Power : 14HP 3600rpm
- Fuel Consumption : 1.7 L/H
- Tank Capacity : 7 L
- Water Tank Capacity : 45 L
- Dimension : 1.070 x 556 x 1.045
- Starting Method : Recoil
- Weight : 130kg
- Blade Diameter : 500 mm
- Max. Cutting : 200 mm
External Vibrator Wacker Neuson AR52
External Vibrator Wacker Neuson AR52- Vibrations : 3000
- Frequency : 50Hz
- Centrifugal Force : 2,7 kN
- Rated Voltage : 400V 3~
- Rated Current : 0,65 Ampere
- Engine Performance : 0,4kW
- Dimensions : 274 x 190 x 102 mm
- Weight : 5,78Kg
- Fastening : 90 x 125 mm
External Vibrator Wacker Neuson AR26
External Vibrator Wacker Neuson AR26- Vibrations : 3000
- Frequency : 50Hz
- Centrifugal Force : 2,7 kN
- Rated Voltage : 400V 3~
- Rated Current : 0,65 Ampere
- Engine Performance : 0,4kW
- Dimensions : 274 x 190 x 102 mm
- Weight : 5,78Kg
- Fastening : 90 x 125 mm
Internal Vibrator Wacker Neuson HMS 55
Internal Vibrator Wacker Neuson HMS 55- Diameter : 55 mm
- Engine / Motor : Double Insulated Universal motor
- Voltage 1~V : 230
- Current : 7.8 A
- Frequency : 50-60 Hz
- Power : 1.8 kW
- Power Cable : 5 m
- Weight : 6.3 Kg
- Length : 410 mm
Internal Vibrator Wacker Neuson HMS 65
Internal Vibrator Wacker Neuson HMS 65- Diameter : 65 mm
- Engine / Motor : Double Insulated Universal motor
- Voltage 1~V : 230
- Current : 7.8 A
- Frequency : 50-60 Hz
- Power : 1.8 kW
- Power Cable : 5 m
- Length head : 385 mm
- Weight head : 6.3 Kg

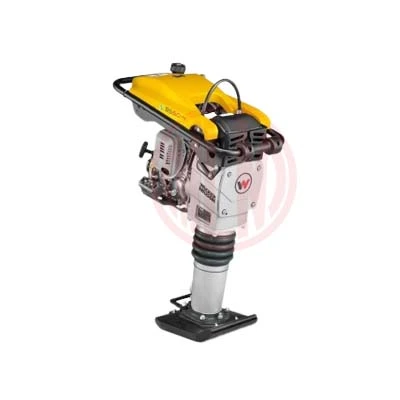

Stamper Kuda Wacker Neuson BS 60-4 As (Tamping Rammer)
Stamper Kuda Wacker Neuson BS 60-4 As (Tamping Rammer)Stamper Kuda Wacker Neuson BS 60-4 As (Tamping Rammer)
Stamper Kuda Wacker Neuson BS 60-4 As (Tamping Rammer)- Type :BS 60-4 As
- Operating Weight : 72 kg
- Engine Type : GXR 120
- Engine Motor : Diesel
- Engine : Honda
- Percussion Rate : 656 blows/min
- Compaction Area : 148m2/hr
- Stroke : 65 mm
- L x W x H : 673 x 343 x 965 mm
Vibratory Ride On Roller (Tandem roller) RD27-120 – Wacker Neuson
Vibratory Ride On Roller (Tandem roller) RD27-120 – Wacker NeusonVibratory Ride On Roller (Tandem roller) RD27-120 – Wacker Neuson
Vibratory Ride On Roller (Tandem roller) RD27-120 – Wacker NeusonGradeability min – max. (without vibration) 30 – 40.0 %
Travel speed 0.0 – 12.0 km/h
Static linear load (front) 1.11 kg/mm
Linear load with vibration Level I (rear) 4.62 kg/mm
Linear load with vibration Level II
(rear) 3.26 kg/mm
Compaction force Level I (front) 54 kN
Compaction force Level II (front) 38 kN
Compaction force I (rear) 54 kN
Compaction force II (rear) 38 kN
Vibration frequency Level I (front) 65.0 Hz
Vibration frequency Level II (front) 51.0 Hz
Vibration frequency Level I (rear) 65.0 Hz
Vibration frequency Level II (rear) 51.0 Hz
Amplitude Level I (front) 0.4500 mm
Amplitude Level II (front) 0.4500 mm
Amplitude Level II (rear) 0.4500 mm
Centrifugal force Level I (front) 49 kN
Centrifugal force Level I (rear) 49 kN
■ Mechanical Details
Length 2,530.0 mm
Width 1,310.0 mm
Height 1,752.0 mm
Operating weight 2,695.0 kg
■ Engine
Cylinder capacity 1,499.0 cm3
Pompa hisap otomatis (Trash Pump) Wacker Neuson PT 6 YT
Pompa hisap otomatis (Trash Pump) Wacker Neuson PT 6 YTPompa hisap otomatis (Trash Pump) Wacker Neuson PT 6 YT
Pompa hisap otomatis (Trash Pump) Wacker Neuson PT 6 YTLx W x H = 2,155 x 1,491 x 1,714 mm
Diameter (suction and pressure pipe) = 152 mm
Operating weight = 870 kg
Discharge Head = 27 m
Discharge capacity max. = 4,304 l/min
Pressure = 2.6 bar
Suction height lift = 7.5 m
Solids diameter max. size = 50mm
Engine / Motor type = Water cooled, 3 cylinders
Engine / Motor manufacture = Yanmar
Displacement = 1,267 cm
RPM / speed max. engine = 2,700 pm
Power max. rate = 18.4 kW
Power Rating Specification = ISO 3046 IFN
Engine oil = 3.4 l
Fuel type = Diesel
Fuel tank capacity = 90 l
Fuel consumption = 5.0 l/h
