ELGi Series EG 11
ELGi Series EG 11- Motor Power : 11 kW / 15 HP
- Working Pressure : 6.9 – 12.1 bar g. 100 – 175 psi g
- Maximum Pressure : 7.4 – 12.6 bar g, 107 – 182 psi g
- Free Air Delivery : 2.01 – 1.39 m3/min, 71 – 49 cfm
- Weight : 590 Kg
- Length x Breadth x Height : 1425mm x 720mm x 1470mm
- Noise Level : 69 dB (A)
ELGi Series EG 22
ELGi Series EG 22- Motor Power : 22 kW / 30 HP
- Working Pressure : 6.9 – 12.1 bar g. 100 – 175 psi g
- Maximum Pressure : 7.4 – 12.6 bar g, 107 – 182 psi g
- Free Air Delivery : 3.96 – 2.69 m3/min, 140 – 95 cfm
- Weight : 690 Kg
- Length x Breadth x Height : 1425mm x 720mm x 1470mm
- Noise Level : 69 dB (A)
ELGi Series EG 37
ELGi Series EG 37- Motor Power : 37 kW / 50 HP
- Working Pressure : 6.9 – 12.1 bar g. 100 – 175 psi g
- Maximum Pressure : 7.4 – 12.6 bar g, 107 – 182 psi g
- Free Air Delivery : 6.99 – 4.84 m3/min, 247 – 171 cfm
- Weight : 1110 Kg
- Length x Breadth x Height : 1705mm x 1111mm x 1570mm
- Noise Level : 69 dB (A)
ELGi Series EN 5
ELGi Series EN 5- Horse Power : 7.5 HP
- Compressor Technology : Screw Compressor
- Maximum Flow Rate : 26 CFM
- Cooling System : Air Cooled
- Weight : 150 kg
- Tank Capacity : 270 L
- Noise : 64dBA
- Max. Pressure : 7.2 bar
- Working Pressure : 7.0 bar
- Dimension : 615 x 715 x 845 mm (LxWxH)

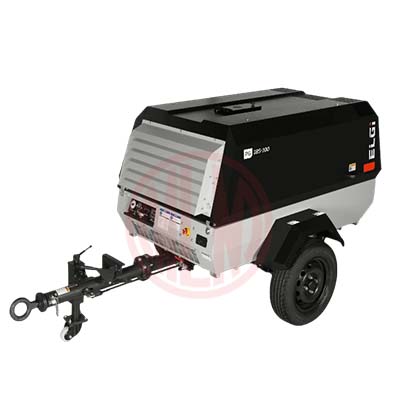

ELGi Kompresor Series PG 185-100
ELGi Kompresor Series PG 185-100- Free Air Delivery : 5.2 m3/min (185cfm)
- Pressure : 7.0 kgf/cm2 (100 psi g)
- Engine : Kubota V-2403-M
- Dimensions : 2910x1490x1420 mm
- Weight : 860 kg
- No. of Outlet : 2 (3/4″)
ELGi Kompresor Series PG 400-100
ELGi Kompresor Series PG 400-100- Free Air Delivery : 11.33 m3/min (400cfm)
- Pressure : 7.0 kgf/cm2 (100 psi g)
- Engine : Ashok Leyland W04CT
- Dimensions : 3275x1680x1780 mm
- Weight : 1500 kg
- No. of Outlet : 1 (1/2″) & 4 (3/4″)
Pompa Air Industri Tsurumi HS 2.4
Pompa Air Industri Tsurumi HS 2.4- Discharge Bore : 2″
- Motor Output : 0.4kW
- Voltage : 230V
- Capacity (m3/h) : 1,5 – 12
- Total Head (m) : 1 – 12
- Solids Passage : 7 mm
- Dry Weight : 11.3 kg
Pompa Air Industri Tsurumi HS 2.75
Pompa Air Industri Tsurumi HS 2.75- Discharge Bore : 2″
- Motor Output : 0.75kW
- Voltage : 230V
- Capacity (m3/h) : 1,5 – 13.5
- Total Head (m) : 3 – 18
- Solids Passage : 7 mm
- Dry Weight : 16.8 kg
Pompa Air Industri Tsurumi HS 3.75
Pompa Air Industri Tsurumi HS 3.75- Discharge Bore : 3″
- Motor Output : 0.75kW
- Voltage : 230V
- Capacity (m3/h) : 1,5 – 18
- Total Head (m) : 2 – 20
- Solids Passage : 7 mm
- Dry Weight : 16.8 kg
Pompa Air Industri Tsurumi KTZ 21.5
Pompa Air Industri Tsurumi KTZ 21.5- Discharge Bore : 2″
- Motor Output : 1.25kW
- Voltage : 380V
- Capacity (m3/h) : 6 – 24
- Total Head (m) : 5 – 21
- Solids Passage : 8.5 mm
- Dry Weight : 34 kg
Pompa Air Industri Tsurumi KTZ 22.2
Pompa Air Industri Tsurumi KTZ 22.2- Discharge Bore : 2″
- Motor Output : 2.2kW
- Voltage : 380V
- Capacity (m3/h) : 6 – 30
- Total Head (m) : 5 – 25
- Solids Passage : 8.5 mm
- Dry Weight : 35 kg
Pompa Air Industri Tsurumi KTZ 23.7
Pompa Air Industri Tsurumi KTZ 23.7- Discharge Bore : 2″
- Motor Output : 3.7kW
- Voltage : 380V
- Capacity (m3/h) : 6 – 24
- Total Head (m) : 16 – 35
- Solids Passage : 8.5 mm
- Dry Weight : 60 kg
Pompa Air Industri Tsurumi KTZ 31.5
Pompa Air Industri Tsurumi KTZ 31.5- Discharge Bore : 3″
- Motor Output : 1.5kW
- Voltage : 380V
- Capacity (m3/h) : 6 – 36
- Total Head (m) : 2 – 12
- Solids Passage : 8.5 mm
- Dry Weight : 33 kg
Pompa Air Industri Tsurumi KTZ 32.2
Pompa Air Industri Tsurumi KTZ 32.2- Discharge Bore : 3″
- Motor Output : 2.2kW
- Voltage : 380V
- Capacity (m3/h) : 6 – 48
- Total Head (m) : 3 – 20
- Solids Passage : 8.5 mm
- Dry Weight : 34 kg
Pompa Air Industri Tsurumi KTZ 33.7
Pompa Air Industri Tsurumi KTZ 33.7- Discharge Bore : 3″
- Motor Output : 3.7kW
- Voltage : 380V
- Capacity (m3/h) : 6 – 54
- Total Head (m) : 3 – 27
- Solids Passage : 8.5 mm
- Dry Weight : 60 kg
Pompa Air Industri Tsurumi KTZ 35.5
Pompa Air Industri Tsurumi KTZ 35.5- Discharge Bore : 3″
- Motor Output : 5.5kW
- Voltage : 380V
- Capacity (m3/h) : 6 – 66
- Total Head (m) : 5 – 32
- Solids Passage : 8.5 mm
- Dry Weight : 74 kg
